This an all-in-one machine that can handle assembling boards, transferring trays, and distributing parts.
A variety of operations can be performed by a single Robot Cell, from those requiring high accuracy such as for inserting electronic parts into panels, to transferring parts to trays to be supplied to specialized machines, to sorting, assembling, and distributing parts.
The various units and vision processing systems are highly versatile, so they can be used as is without the need for dedicated designs.
This allows for low-cost introduction by greatly reducing the cost of design, assembly, and other start-up costs.
STRENGTH
01
Conventional dedicated machines such as inserters required repackaging into dedicated trays in the supply process.

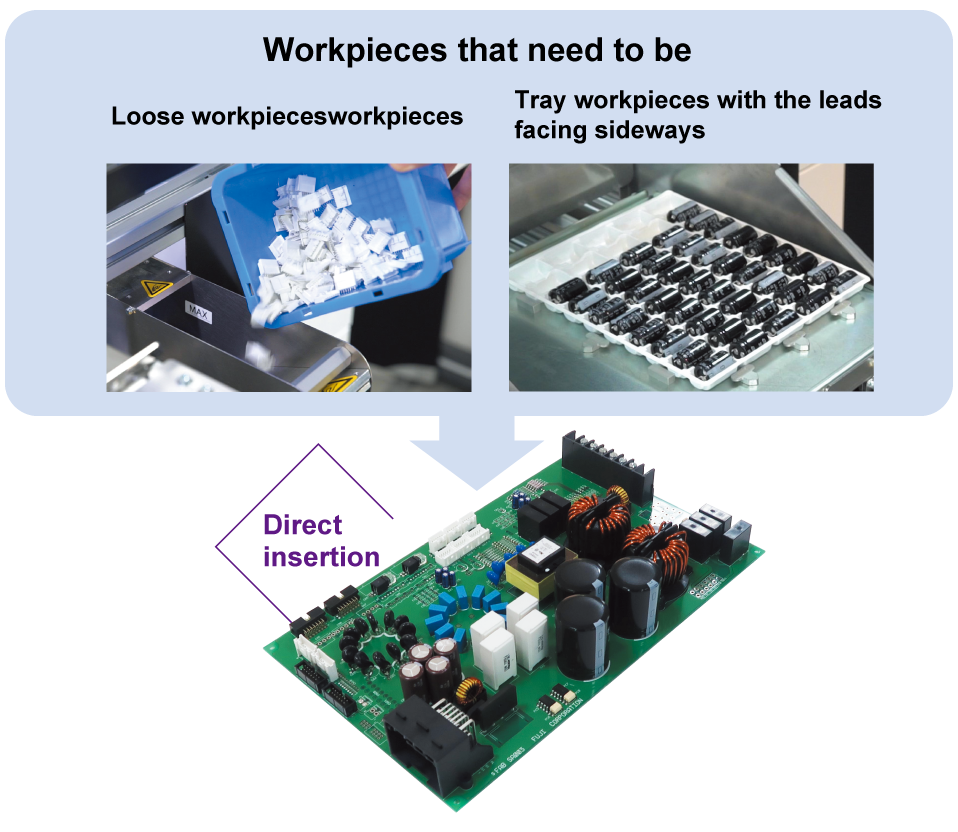

With SmartWing BA, parts can be supplied in their original packaging using Robot Cell Kits such as loose-part feeders and tray conveyance units, along with Fuji's proprietary high-versatility vision processing system.
02
For those who want to automate insertion processes but find large upfront investment difficult, SmartWing BA is the answer.
Robot Cell Kits can be freely added to SmartWing BA, allowing incremental investment while verifying effectiveness.

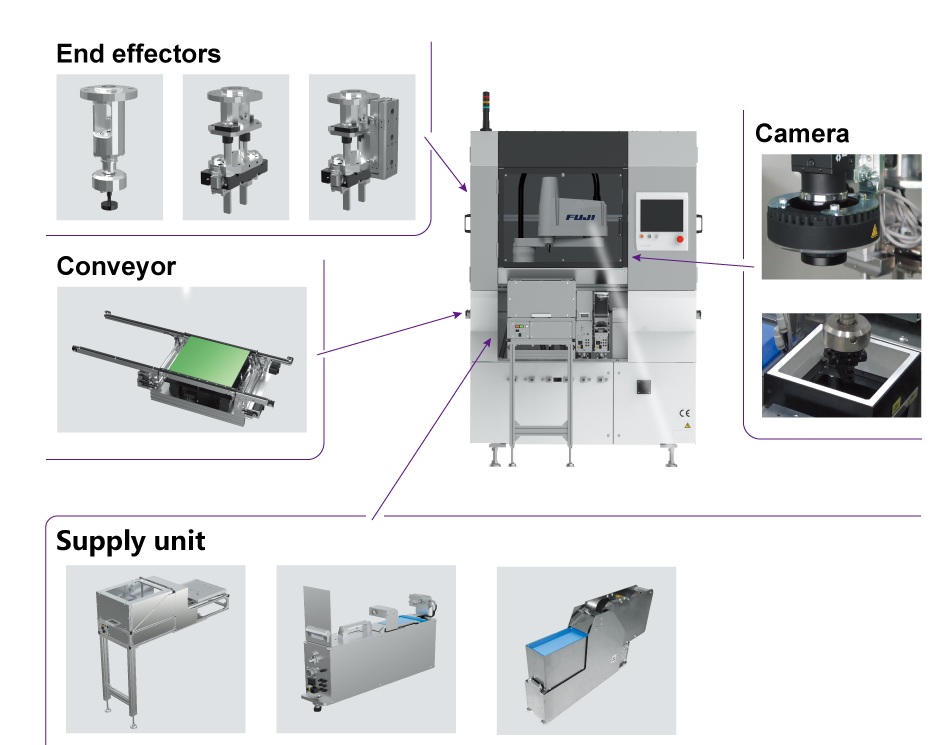

The Robot Cell Kit lineup is versatile and cost-effective, flexibly supporting a wide variety of tasks.
03
Powerful standard tools that require no specialized skills or experience make it easy to create production jobs and vision processing data.
Simply adding production jobs and vision processing data allows product additions and changes—no teaching or programming language expertise required; settings can be made by following on-screen instructions.
TRAINING
We provide training so that customers can fully utilize the functions and use the equipment efficiently. For details, please refer to the member site "Fuji Community".
Fuji Community*Member registration is required to use this service. Customers wishing to register should contact our sales department. This service is for customers using FUJI products.
SPEC
| Item | Details |
|---|---|
| Workpiece size | Minimum: 4×4×4mm Maximum: 40×40×75※mm |
| Panel size | Minimum: 50×50mm Maximum: 400×380mm |
| Panel thickness | 1.2〜6.0mm |
| Camera | Wrist camera (2.3M color): Field of view 100×100mm Side-light work camera L (5M monochrome): Field of view 120×40mm |
| Press-fit force | Maximum: 98N |
| Machine size (L×W×H) | 1,385×1,562×2,188mm (Platform section only) |
| Machine weight | 700kg (Platform section only) |
| Power | Single phase 200〜230V±10V |
| Air | 0.4MPa or more |
| Air consumption | 120L/min (A.N.R) |
※There are restrictions due to pre-mounted parts, tray shape, end effector length, etc.
